ICONIC W77 AI² ML
The design:
An ingenious take on elegance. The precise lines, slim contours, and refined details that define the Iconic collection are fully expressed in this solution. Let your creativity shape what it can become.
ATTENTION TO DETAIL

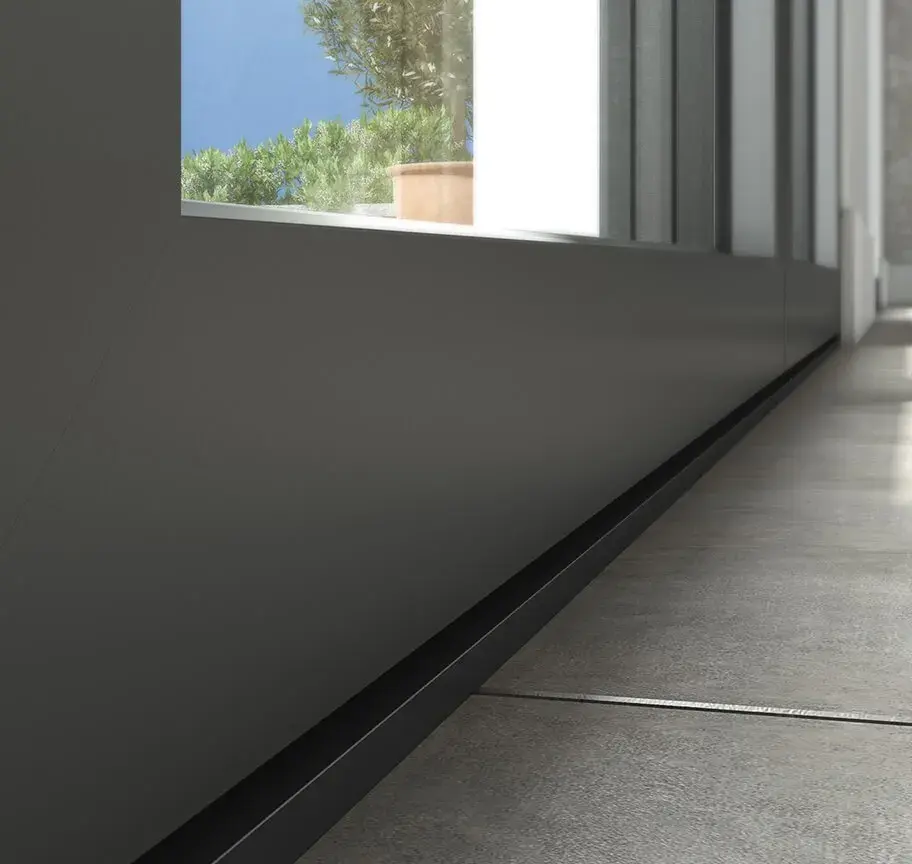

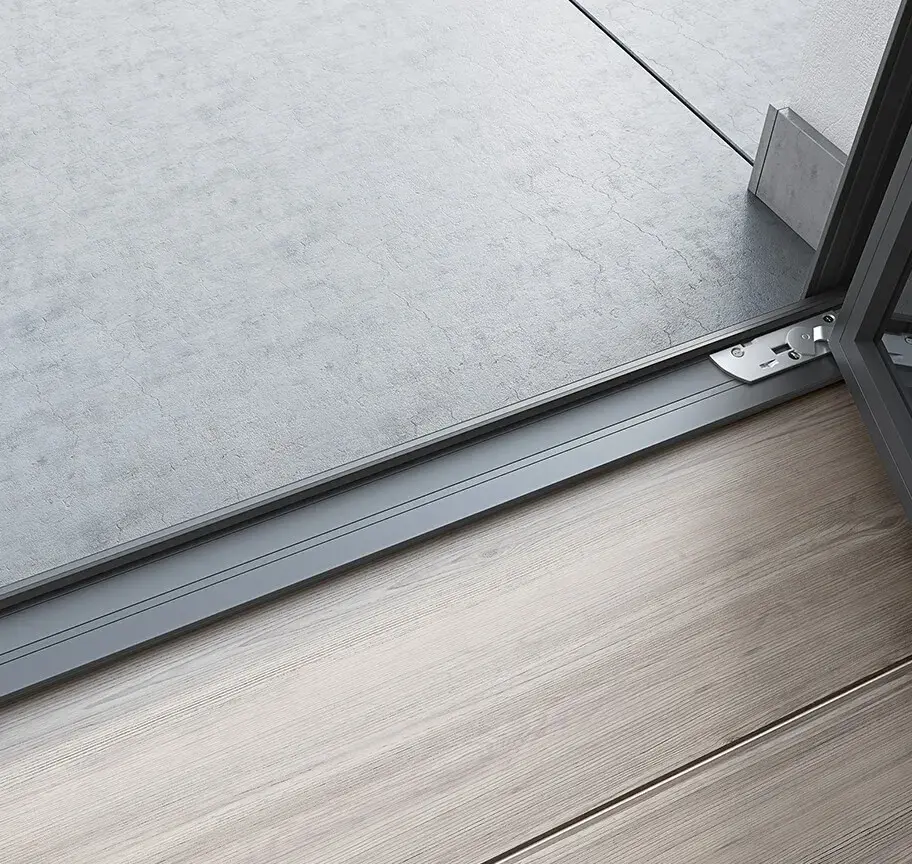

UNOBSTRUCTED TRANSIT
A generous, open passage enabled by a slim 79 mm frame. Designed with
accessibility in mind for children and individuals with physical challenges
accessibility in mind for children and individuals with physical challenges
SAME LEVEL APPEARANCE INWARDS
Ultimate flush appearance on the inner side of the window, delivered by a specially designed frame and seamlessly accommodating a concealed
tilt-and-turn system.
tilt-and-turn system.
FIRM & MINIMAL
Specially designed T-profiles with a 10 mm inner reinforcement increase, ideal for robust constructions with wide openings and aligned with contemporary architectural trends.
EXTRA FEATURES
CONCEALED COMPONENTS
Form follows function,” they said. We elevated form by discreetly concealing the functional elements

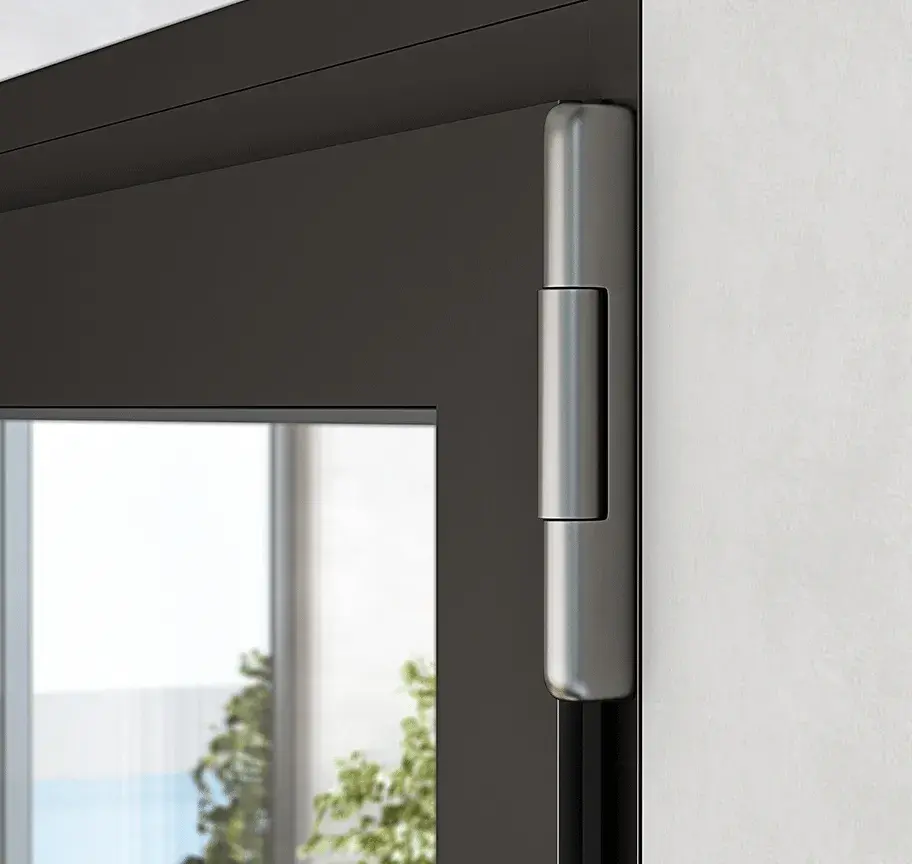

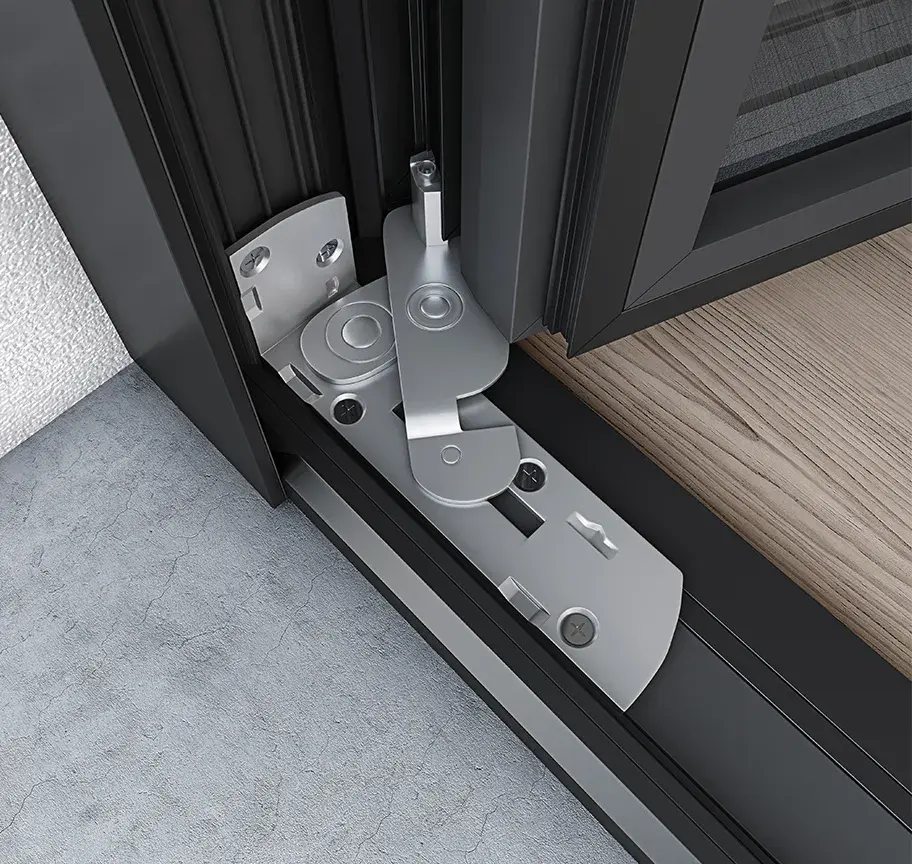

HIDDEN HINGES
Concealed hinges for opening and tilting, fully out of sight.

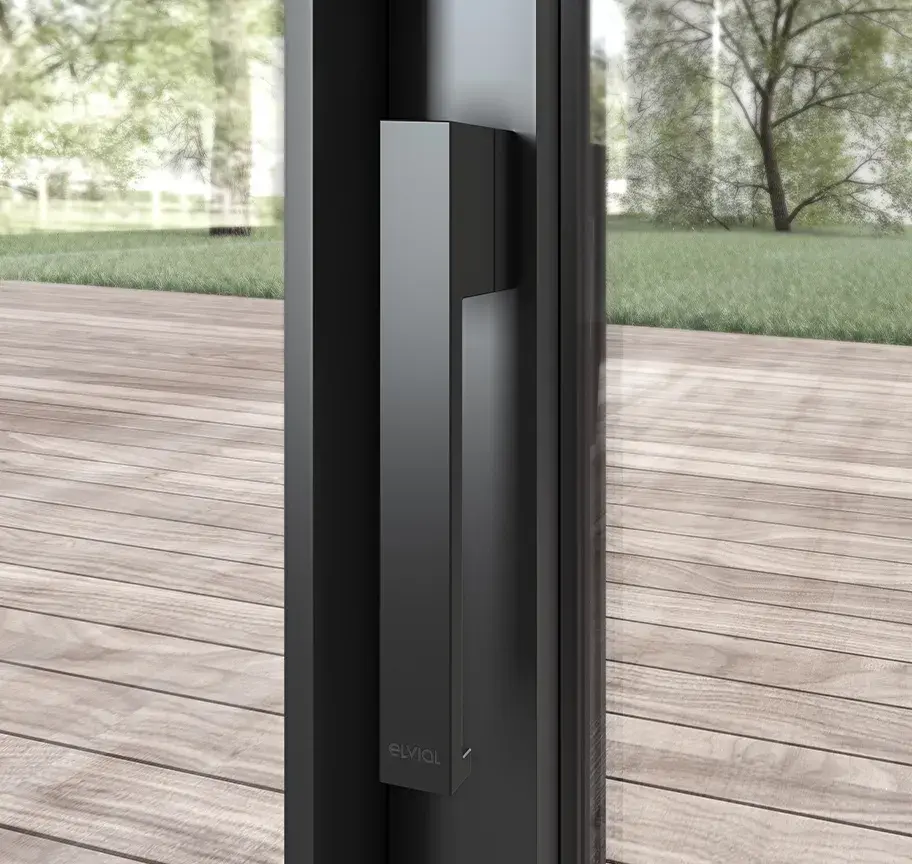

HANDLES
Handles so sophisticated, they bring elegance to industrial design..
The Technology:
We made it incomparable in terms of energy performance, inviolable and impermeable. We made it complete and versatile so you can make it wonderful. The performance of ICONIC W77 AI² on all factors affecting interior environment is outstanding and certified by ift Rosenheim Institute in Germany.

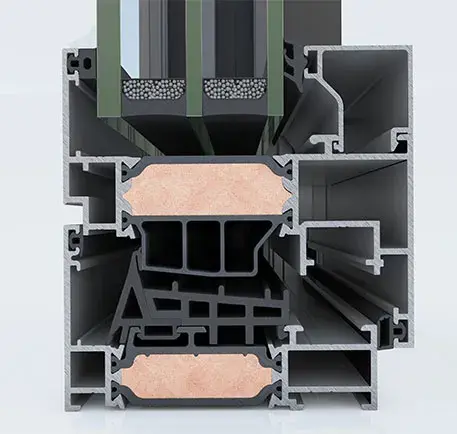

ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.
Level 1
Uf ≥ 1.6 W/m²K
Level 2
Uf ≥ 0.86 W/m²K
Level 3
Uf ≥ 0.74 W/m²K
Energy
Levels

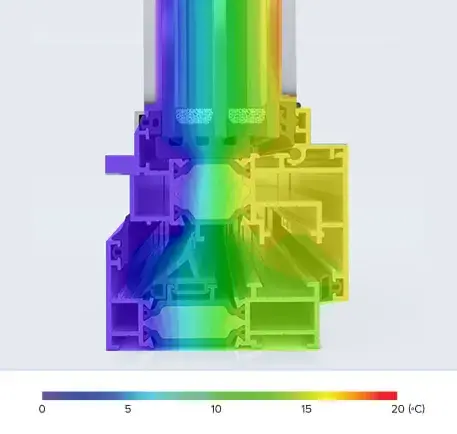

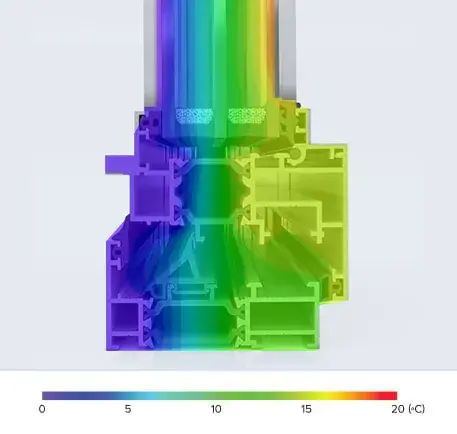

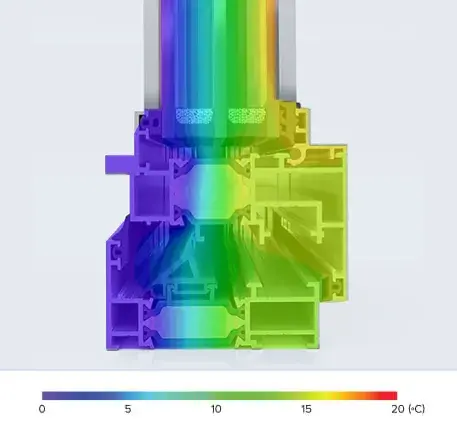

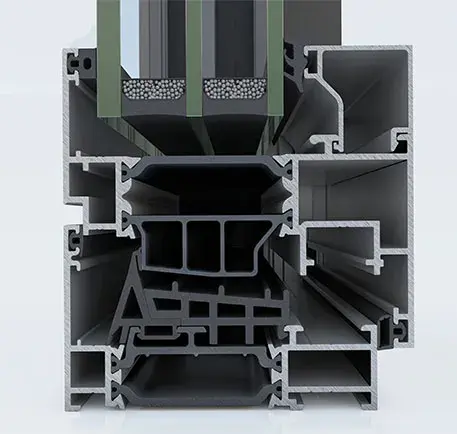

Isothermic
View

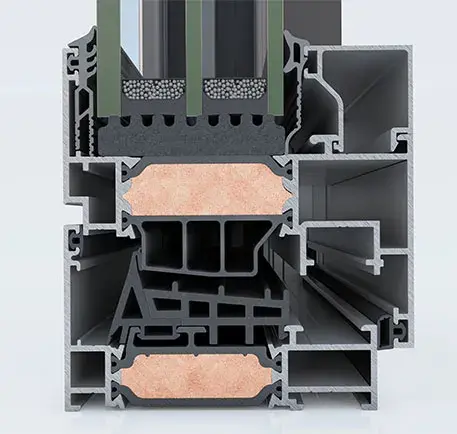

THE IDENTITY
Design
Frame Depth
77
mm
mm
Min Face Height
Frame – Sash
89
mm
mm
Min Face Height
Threshold – Sash
79
mm
mm
Min Face Width
Middle Mullion
154
mm
mm
Properties
Max Sash Height
2.800
mm
mm
Max Sash Width
1.400
mm
mm
Max Sash Weight
180
kg
kg
Max Glass Thickness
70
mm
mm
THE PERFORMANCE
Energy
Thermal Insulation Uf
EN ISO 10077-2
≥0.74
W/m²K
W/m²K
Confort
Air Permeability
EN 12207
Class 4
Watertightness
EN 12208
E1050
Resistance to Wind Load
EN 12210
C5 / B5
Sound Reduction
EN 10140-2
48 dB
NAFS
AAMA Rating
Class AW*
PG Rating
100*
