ICONIC W77 AI² CE
The design:
Ratio and proportion are our favorite playground. Through careful,
considered design, we make sure every versatile solution is as beautiful as it is functional.
ATTENTION TO DETAIL
SAME LEVEL APPEARANCE INWARDS:
A seamless interior plane, made possible by a specially designed frame and the discreet integration of a hidden tilt-and-turn mechanism.
F IR M & MI NI MAL

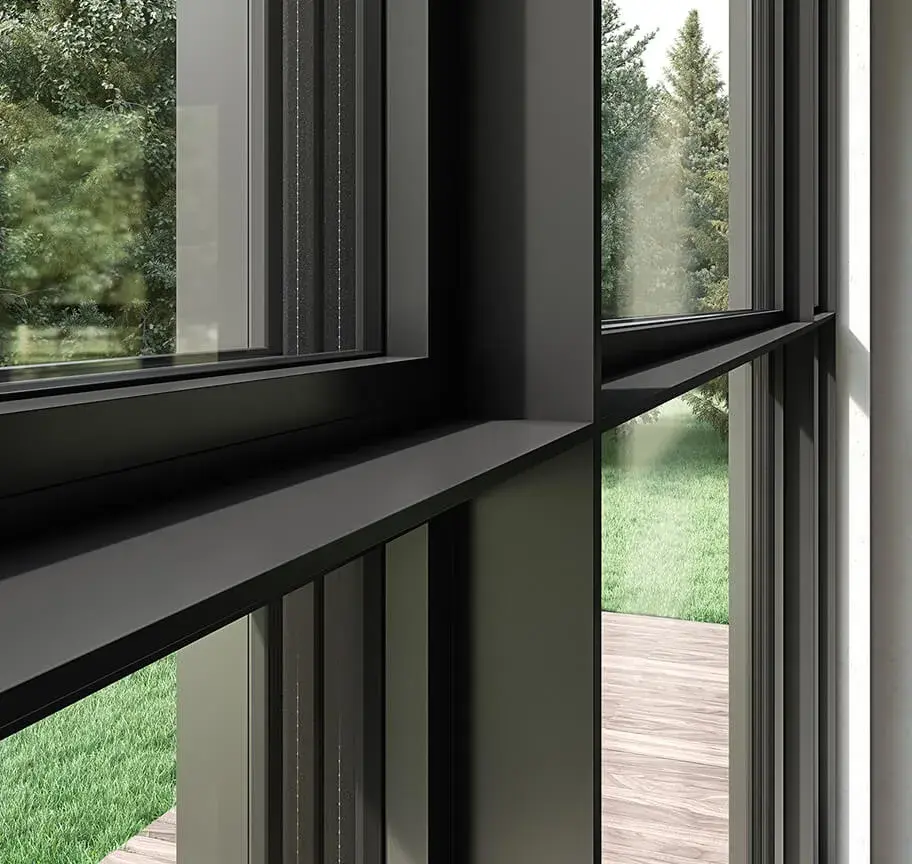

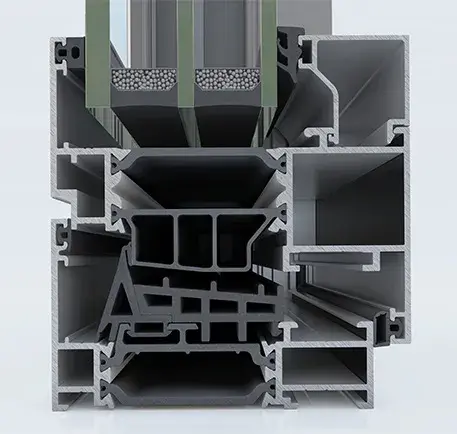

Specially designed T-profiles with a 10 mm inner reinforcement increase, ideal for robust constructions with wide openings and aligned with contemporary architectural trends.
EXTRA FEATURES
CONCEALED COMPONENTS
Form follows function,” they said. We elevated form by discreetly concealing the functional elements

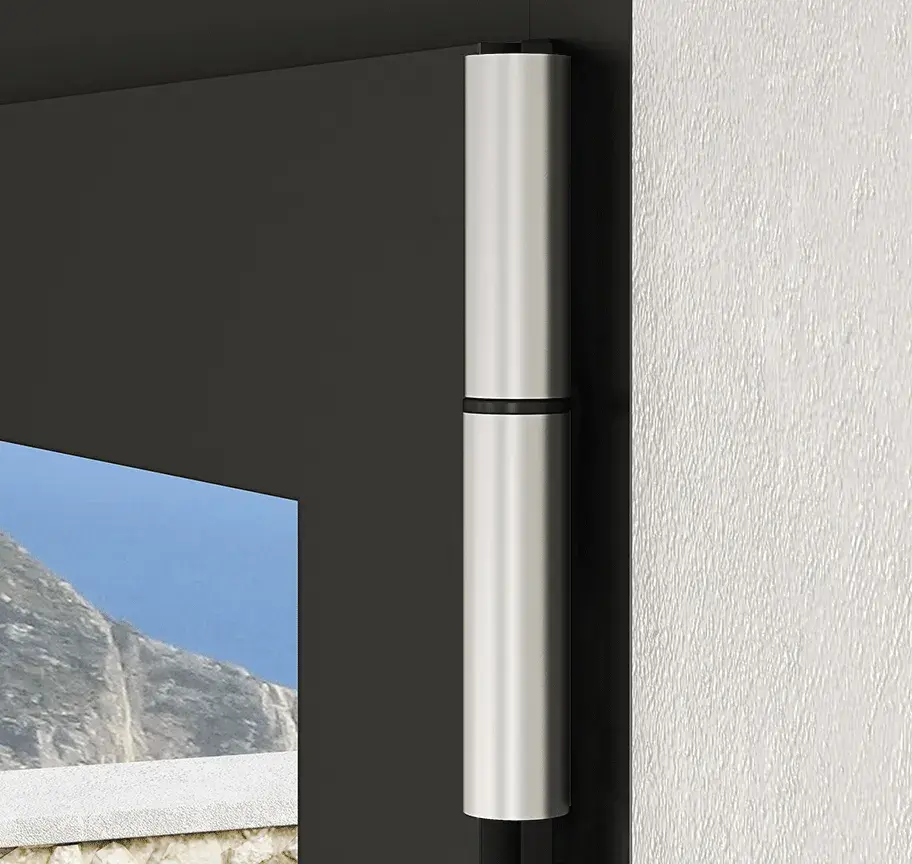

HIDDEN HINGES

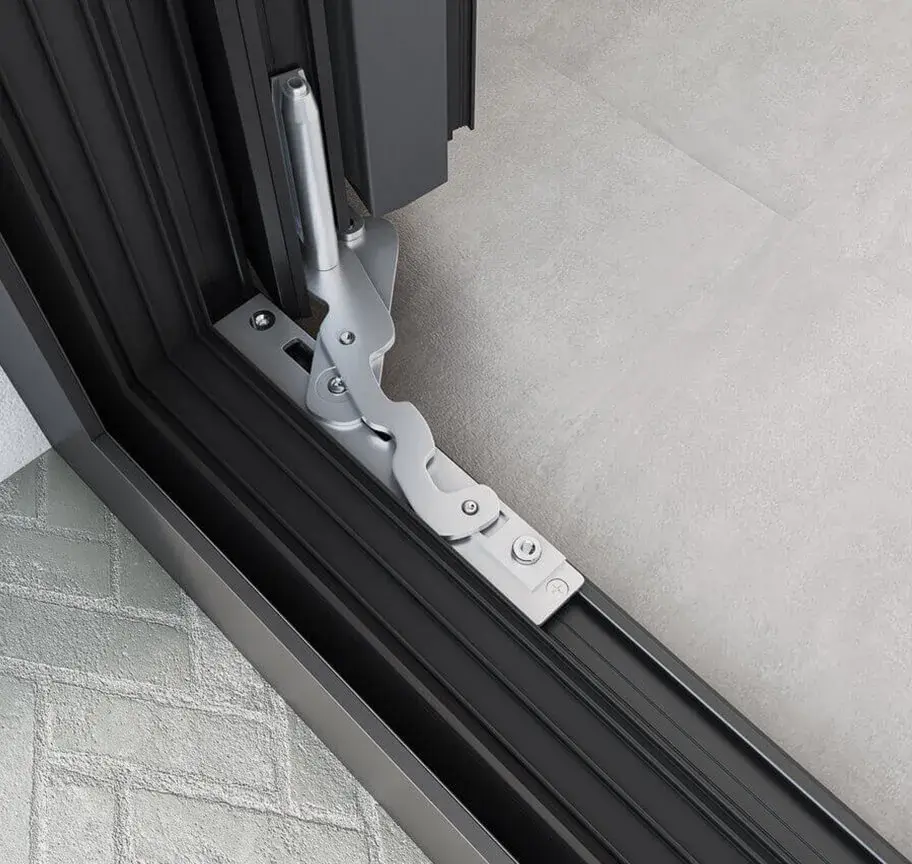

Concealed hinges for opening and tilting, fully out of sight.
MOVE WITHOUT LIMITATIONS

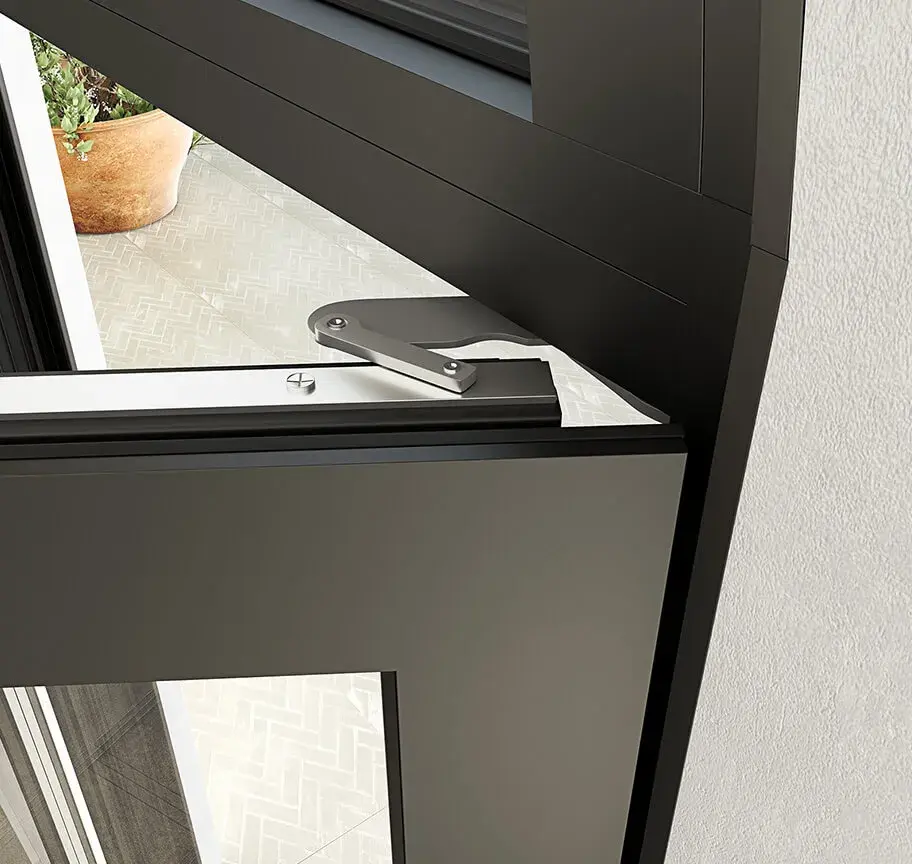

The CE edition enables a full 180º opening, even with a concealed hinge system.
HANDLES
Handles so sophisticated, they bring elegance to industrial design.
The Technology:
We made it incomparable in terms of energy performance, inviolable and impermeable. We made it complete and versatile so you can make it wonderful. The performance of ICONIC W77 AI² on all factors affecting interior environment is outstanding and certified by ift Rosenheim Institute in Germany.

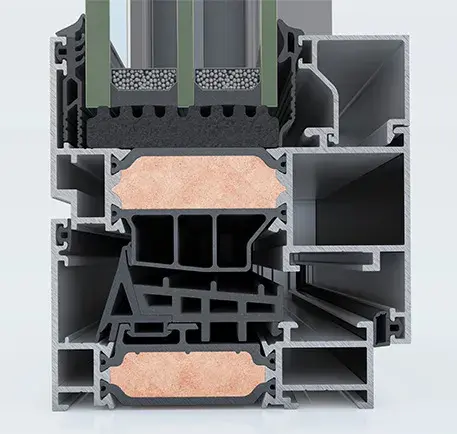

ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.
Level 1
Uf ≥ 1.6 W/m²K
Level 2
Uf ≥ 0.86 W/m²K
Level 3
Uf ≥ 0.74 W/m²K
Energy
Levels

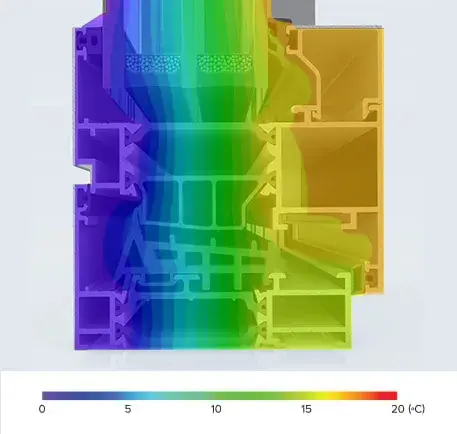

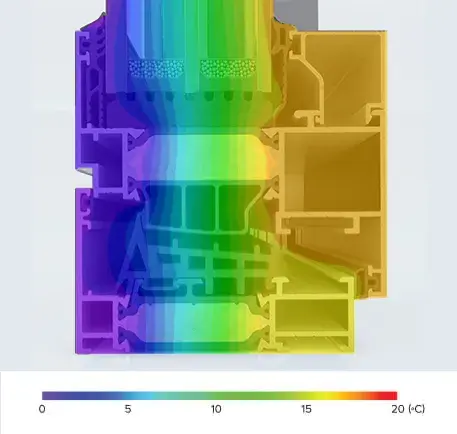

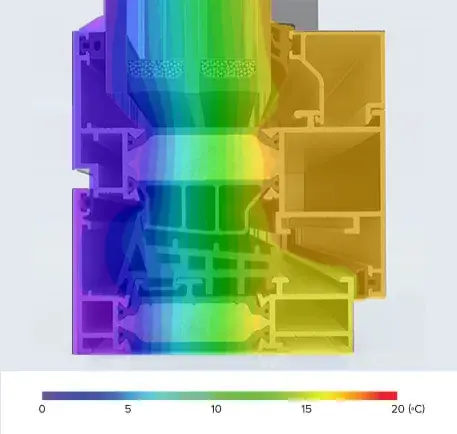

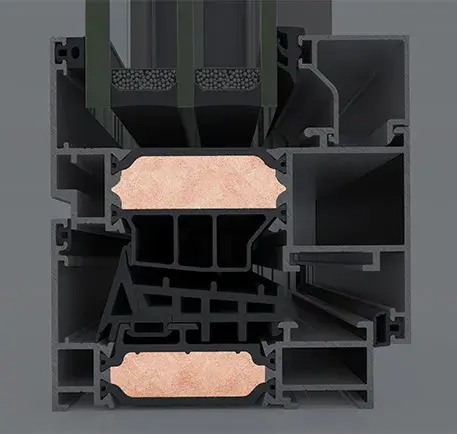

Isothermic
View
THE IDENTITY
Design
Frame Depth
77
mm
mm
Min Face Height
Frame – Sash
89
mm
mm
Min Face Height
Threshold – Sash
79
mm
mm
Min Face Height
Middle Mullion
154
mm
mm
Properties
Max Sash Height
2.800
mm
mm
Max Sash Width
1.400
mm
mm
Max Sash Weight
180
kg
kg
Max Glass Thickness
70
mm
mm
THE PERFORMANCE
Energy
Thermal Insulation Uf
EN ISO 10077-2
≥0.74
W/m²K
W/m²K
Confort
Air Permeability
EN 12207
Class 4
Watertightness
EN 12208
E1200
Resistance to Wind Load
EN 12210
C5 / B5
Sound Reduction
EN 10140-2
48 dB
NAFS
AAMA Rating
Class AW*
PG Rating
100*
