W67 HI²
The design:
Your unique ideas, combined with our flawless solutions, will turn every project into a benchmark you can be proud of.
ATTENTION TO DETAIL

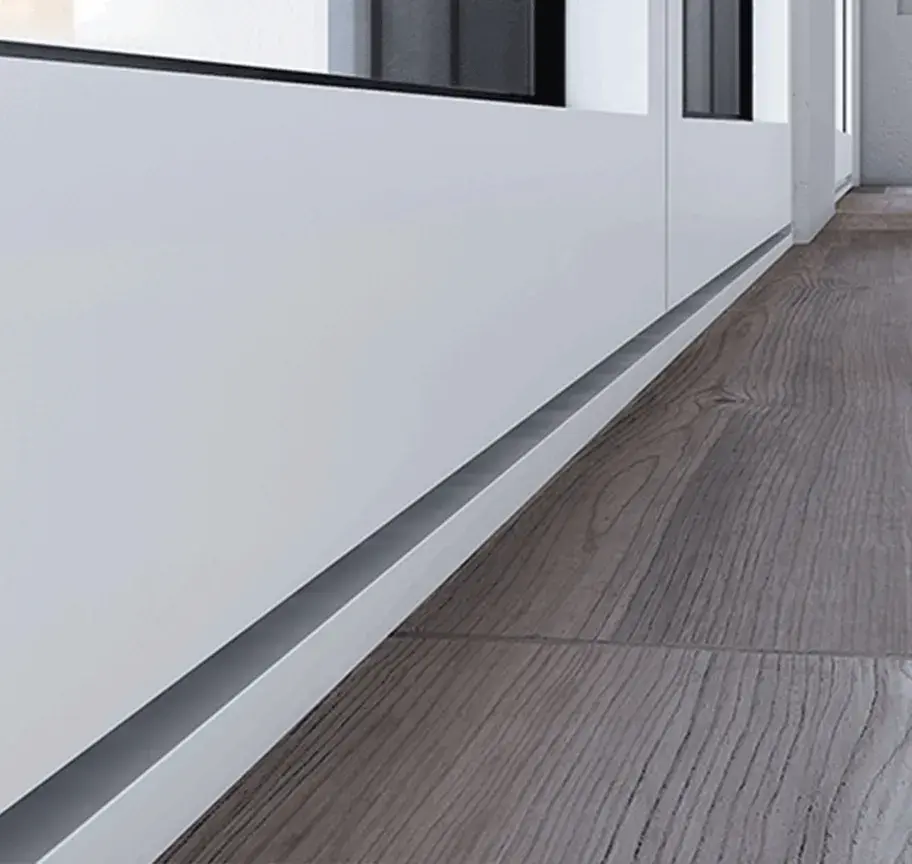

SAME LEVEL APPEARANCE INWARDS
A perfectly flush appearance on the inner side of the window, achieved through a specially designed frame— ideal for integrating a concealed tilt- and-turn mechanism.

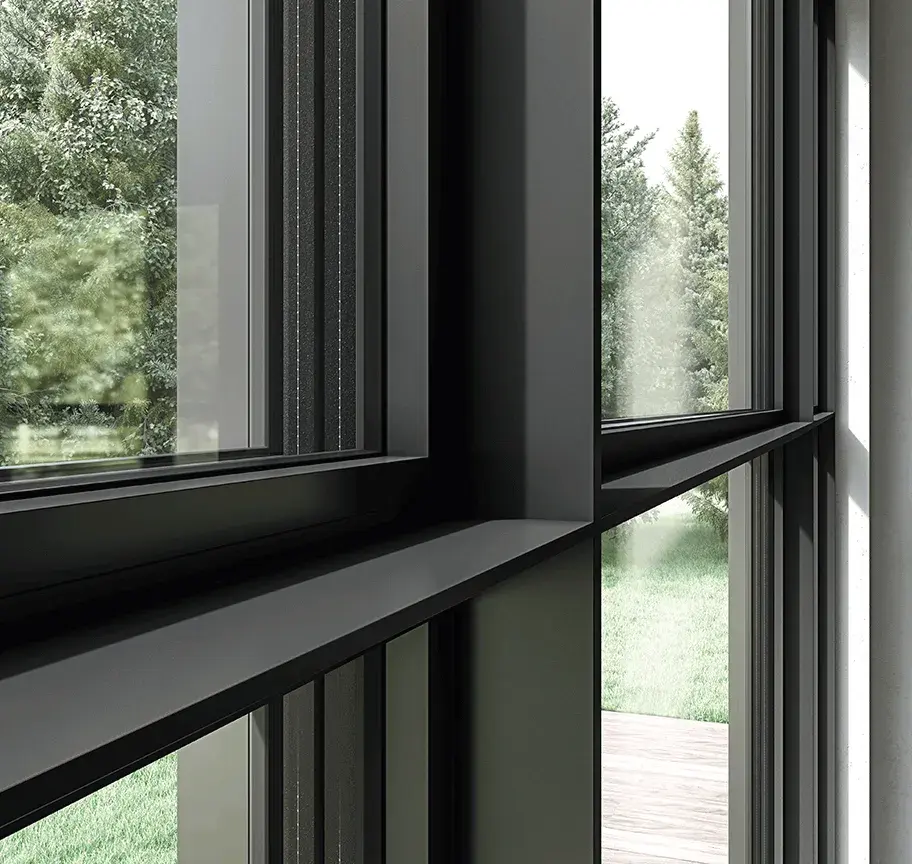

F IR M & MI NI MAL
Specially designed T-profiles with a 10 mm increase in inner reinforcement, ideal for robust structures with wide openings and aligned with contemporary architectural trends.
EXTRA FEATURES
CONCEALED COMPONENTS
Form follows function—but we honored form by integrating the functional components invisibly.

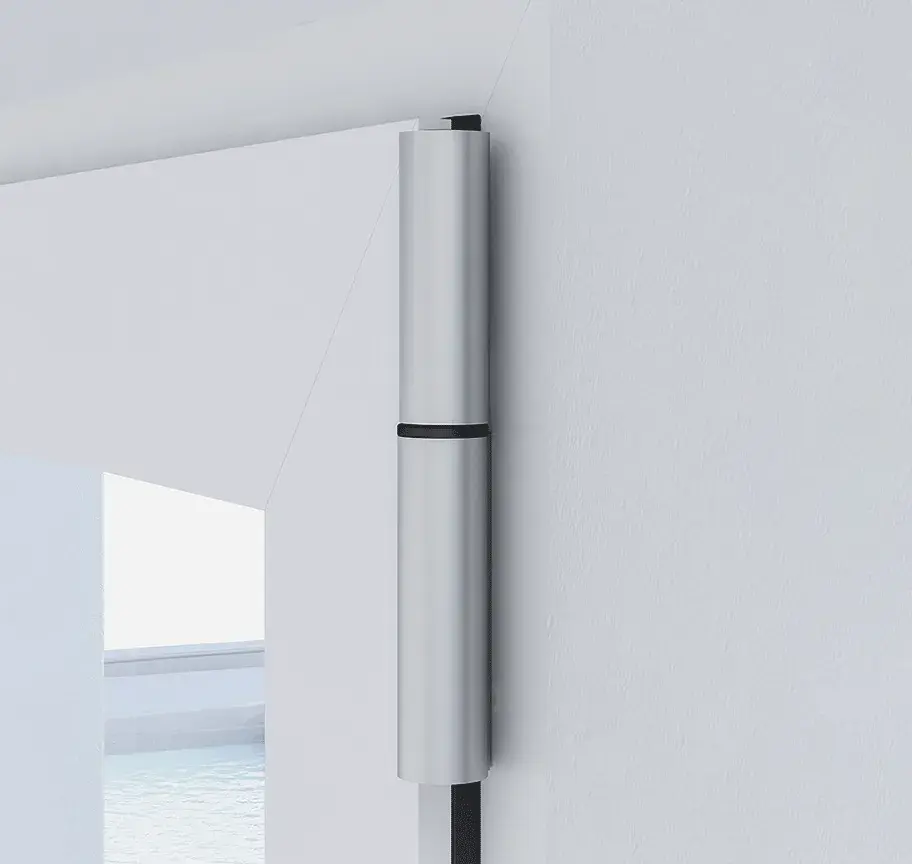

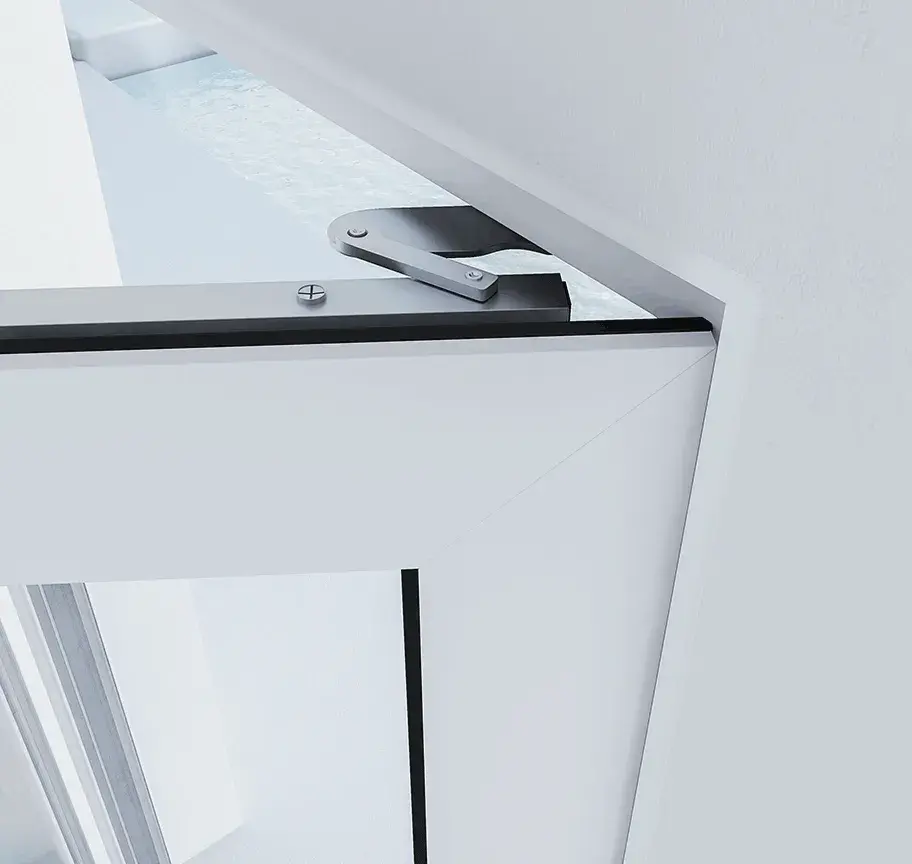

HIDDEN HINGES
Concealed hinges for opening and tilting, fully out of sight.

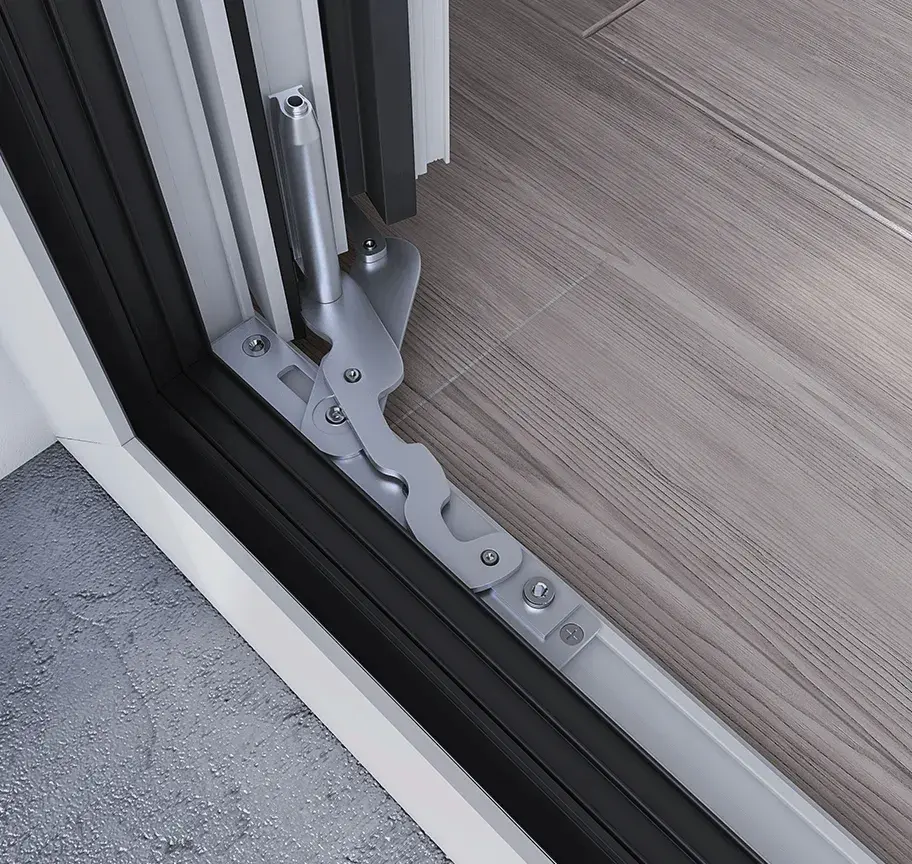

MOVE WITHOUT LIMITATIONS
The CE edition enables a full 180º opening, even with a concealed hinge system.

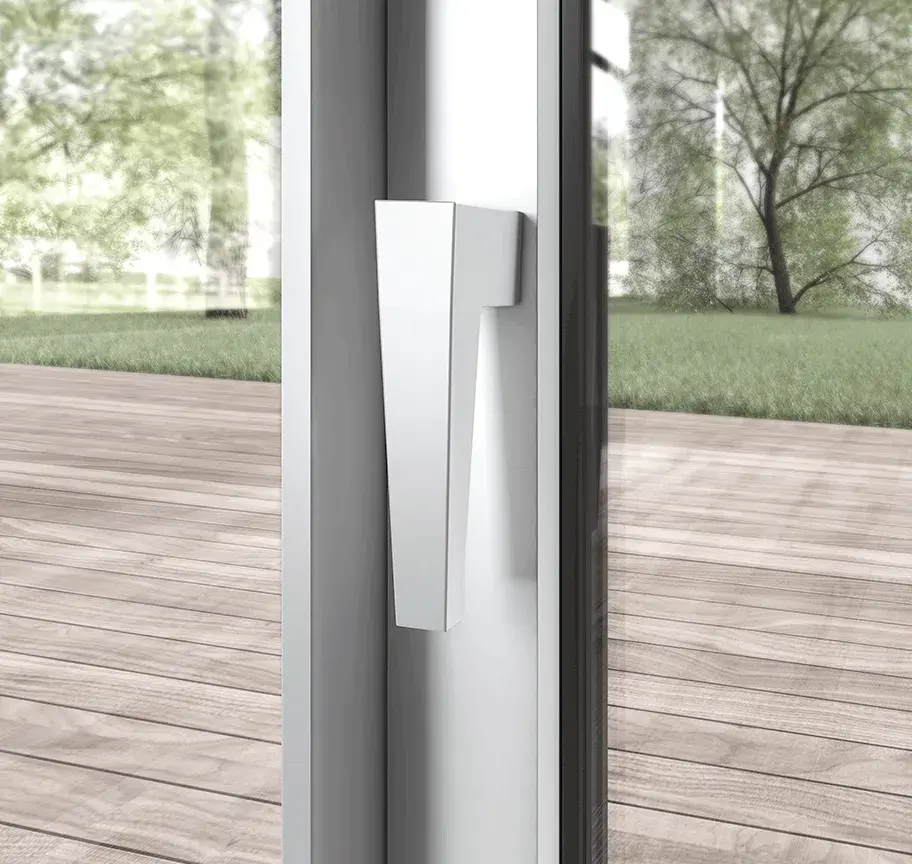

HANDLES
Handles so sophisticated that render grace to industrial design.
The Technology:
IIt’s a feeling. It’s precious. Noise, water, and wind stay outside,
while everything inside remains safe and comfortable. This is where we set clear boundaries— and keep them uncompromised. ESSENCE W67 HI² delivers
outstanding performance across all factors affecting the interior environment, certified by ift Rosenheim Institute in Germany.

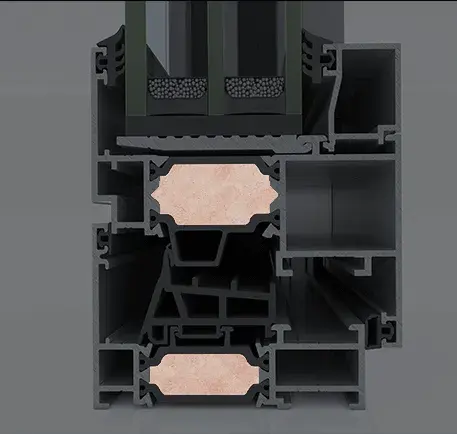

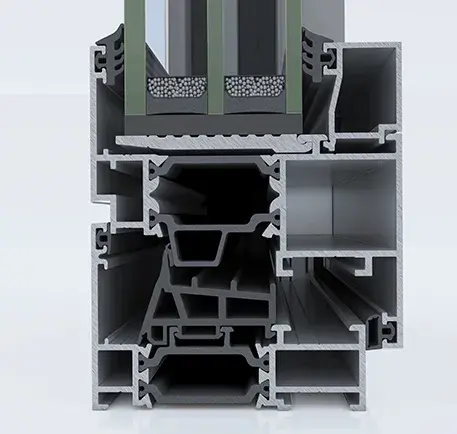

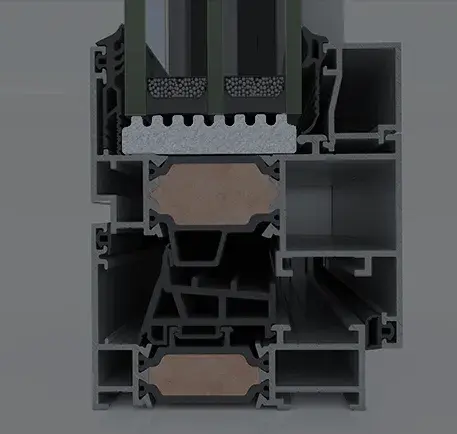

ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.
Level 1
Uf ≥ 1.8 W/m²K
Level 2
Uf ≥ 1.2 W/m²K
Level 3
Uf ≥ 1.1 W/m²K
Energy
Levels

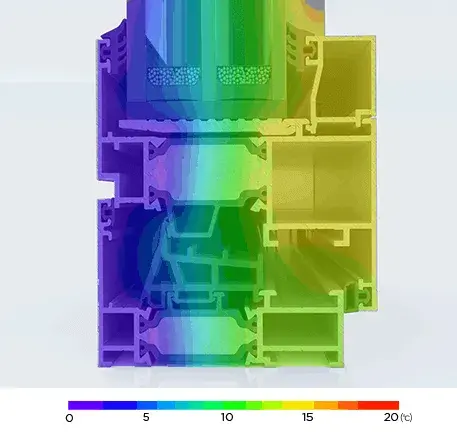

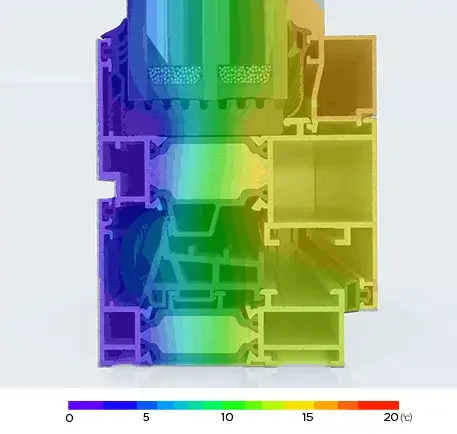

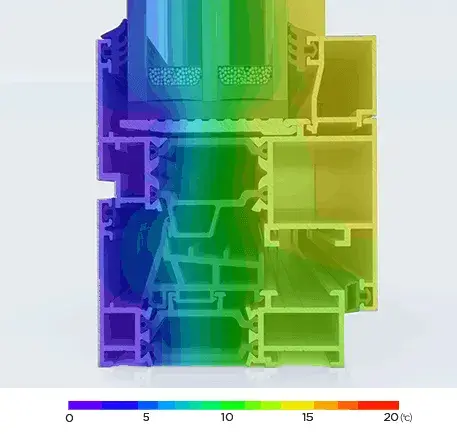

Isothermic
View
THE IDENTITY
Design
Frame Depth
67
mm
mm
Min Face Height
Frame – Sash
89
mm
mm
Min Face Height
Threshold – Sash
79
mm
mm
Min Face Height
Middle Mullion
154
mm
mm
Properties
Max Sash Height
2.800
mm
mm
Max Sash Width
1.400
mm
mm
Max Sash Weight
180
kg
kg
Max Glass Thickness
60
mm
mm
THE PERFORMANCE
Energy
Thermal Insulation Uf
EN ISO 10077-2
≥1.1
W/m²K
W/m²K
Confort
Air Permeability
EN 12207
Class 4
Watertightness
EN 12208
E1050
Resistance to Wind Load
EN 12210
C5 / B5
Sound Reduction
EN 10140-2
40 dB
NAFS
AAMA Rating
Class AW*
PG Rating
100*
