ESSENCE W67BS HI² ML

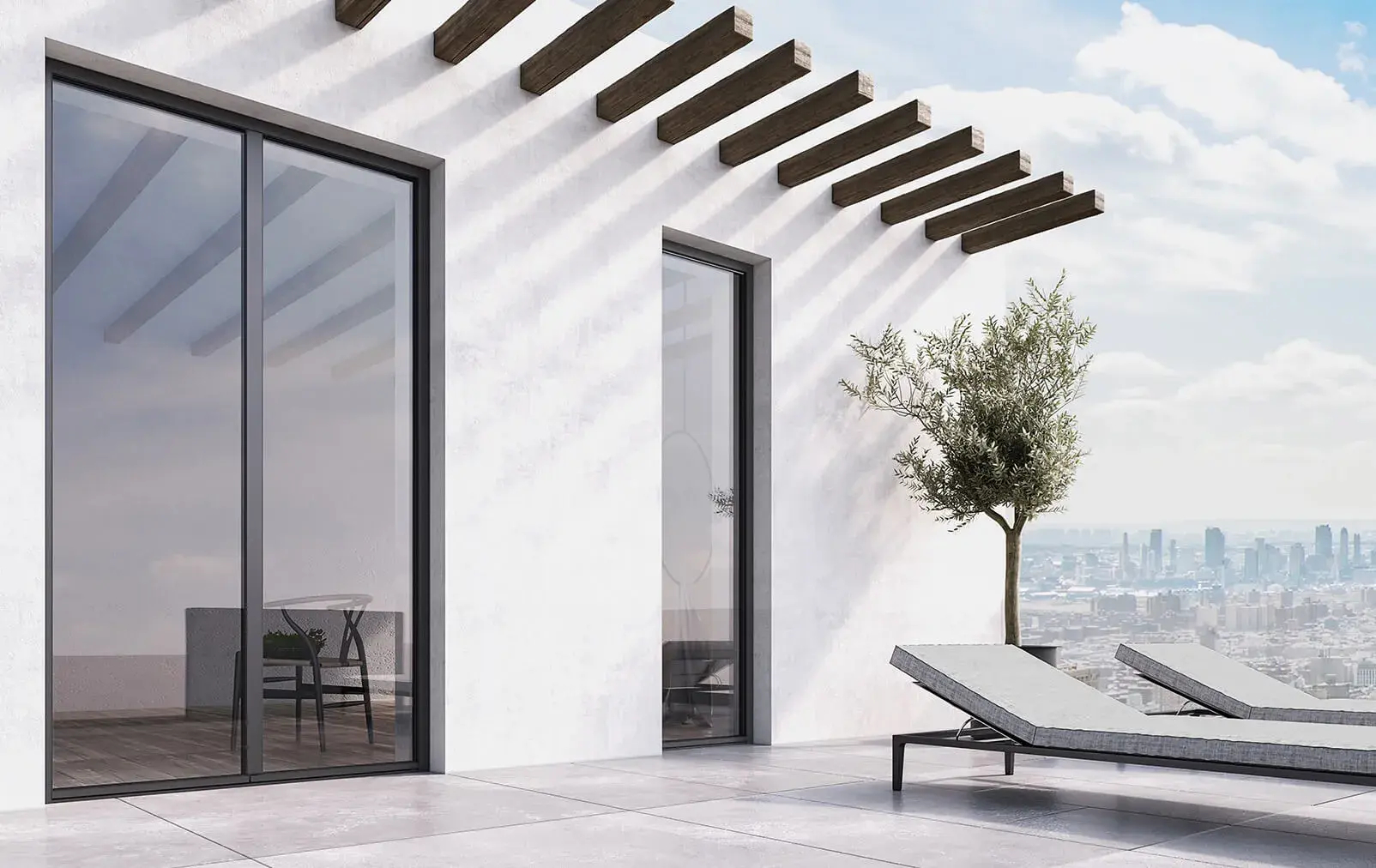

The design:
Create iconic aesthetics with a solution that combines slim lines, a range of finishes, and flawless detailing—all adaptable to your design concepts and plans.
ATTENTION TO DETAIL
UNOBSTRUCTED TRANSIT
A generous 20 mm frame height ensures an open passage, ideal for children and people with physical challenges

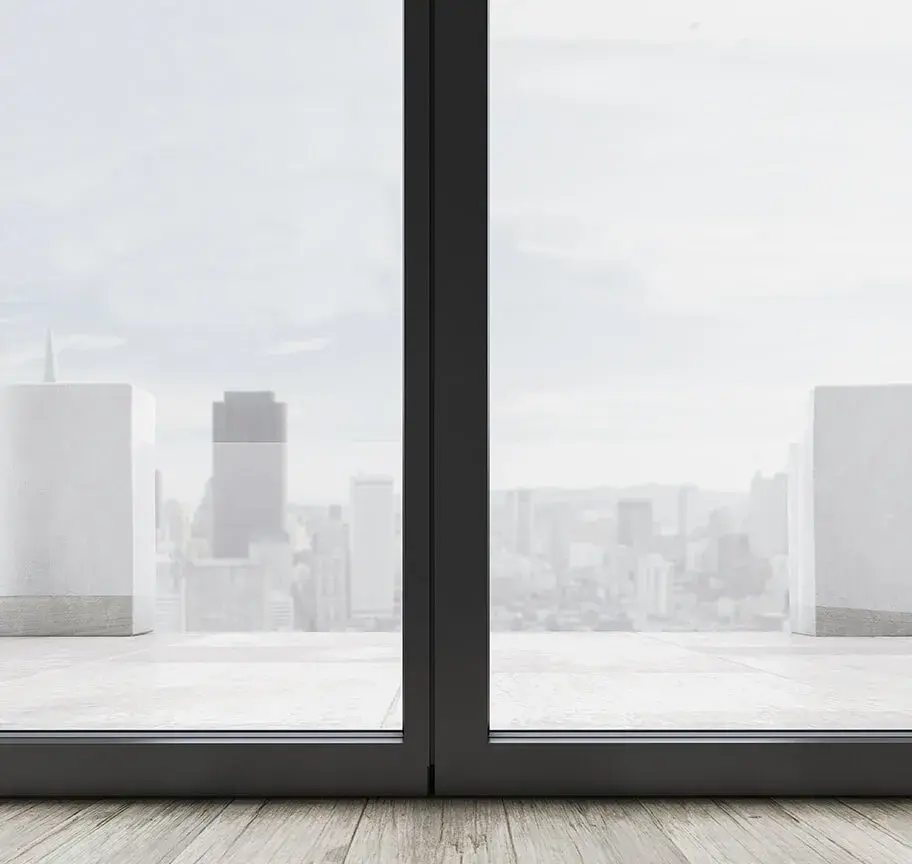

MAXIMUM VIEW
The sash junction has never looked sleeker. The integrated adjoining
profile reduces the central vertical profile to just 78 mm, while the Blind Sash edition presents an outside-facing surface of only 66 mm.
profile reduces the central vertical profile to just 78 mm, while the Blind Sash edition presents an outside-facing surface of only 66 mm.

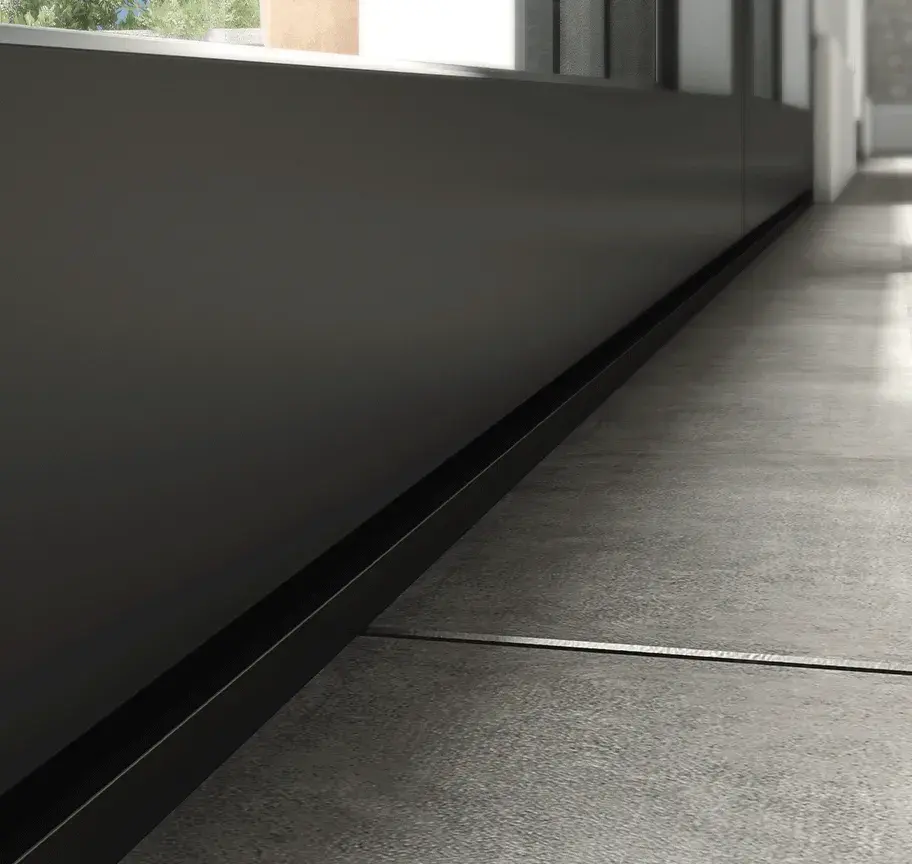

SAME LEVEL APPEARANCE INWARDS
Ultimate flush appearance on the inner side of the window, delivered by a specially designed frame and seamlessly accommodating a concealed
tilt-and-turn system
tilt-and-turn system

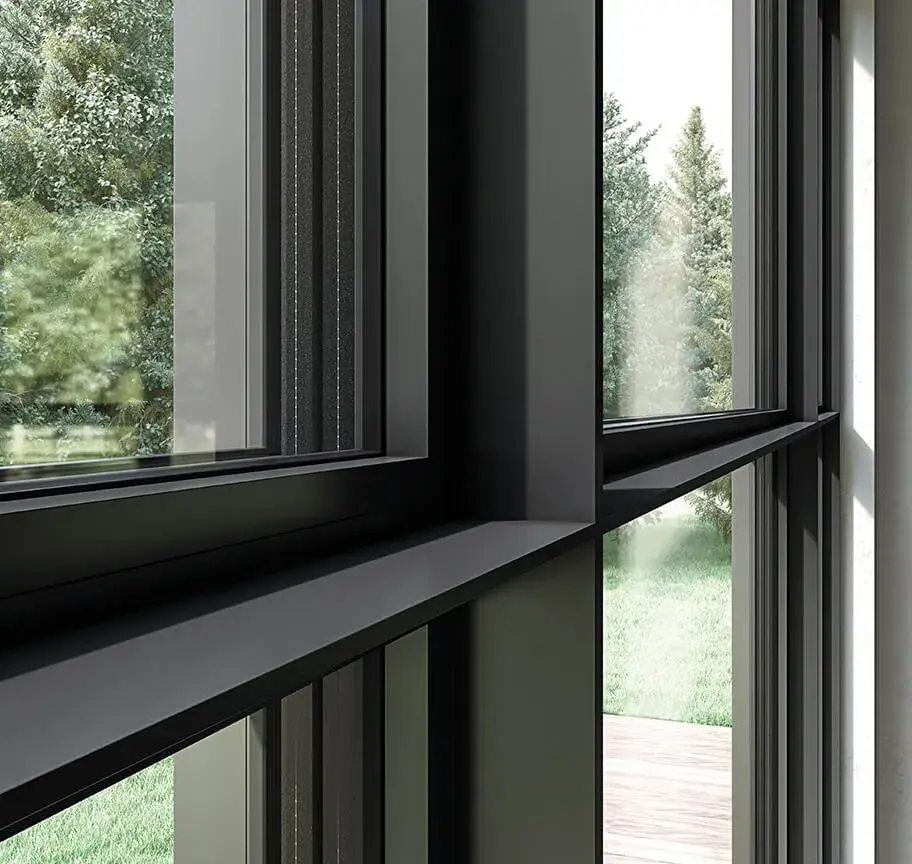

F IR M & MI NI MAL
Specially designed T-profiles with a 10 mm inner reinforcement increase, ideal for robust constructions with wide openings and aligned with contemporary architectural trends.

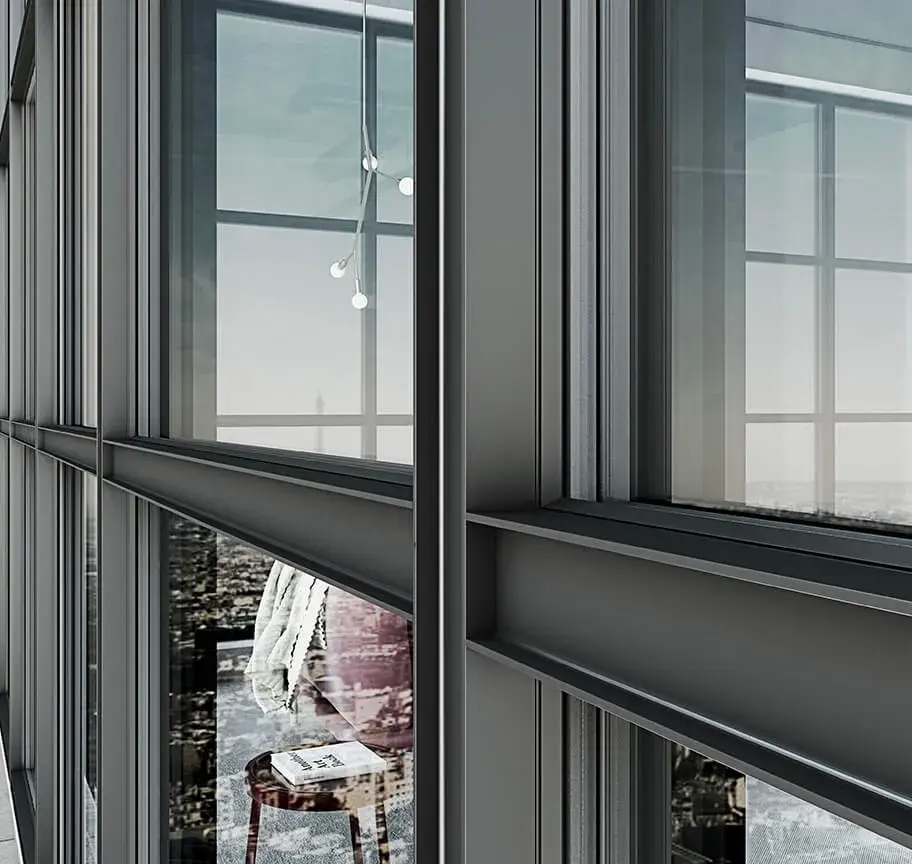

INDUSTRIAL DESIGN WINDOW WALLS
This exclusively developed collection of uniquely designed profiles enables the creation of window walls with a distinctive industrial look and feel.
EXTRA FEATURES
CONCEALED COMPONENTS
Form follows function,” they said. We elevated form by discreetly concealing the functional elements.

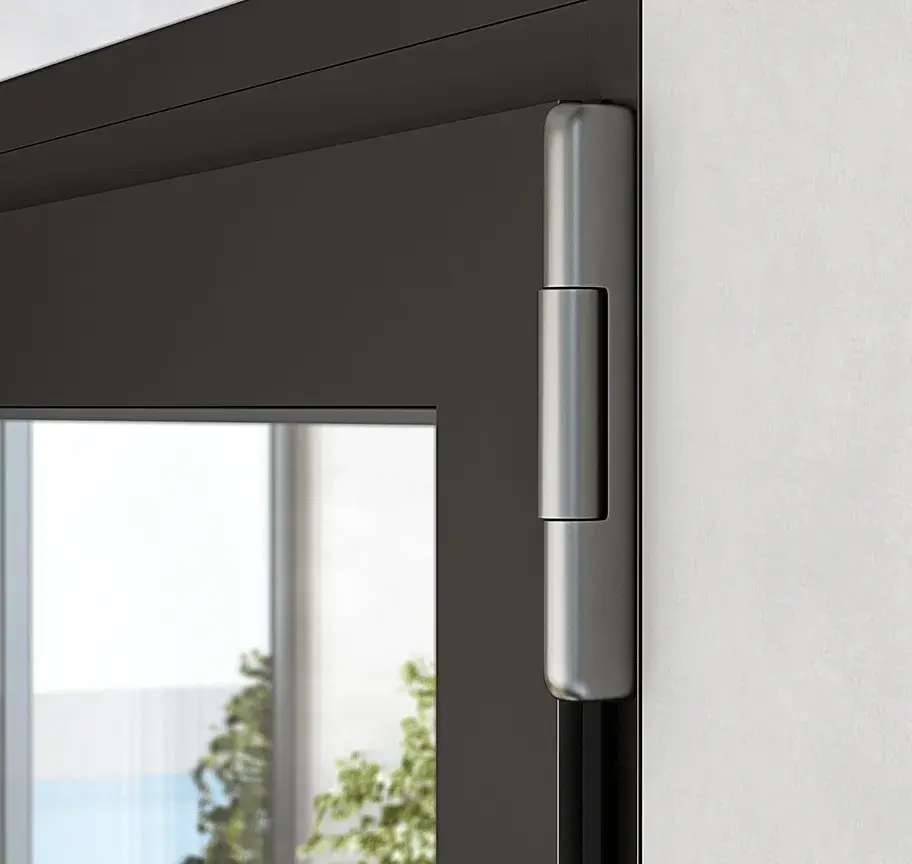

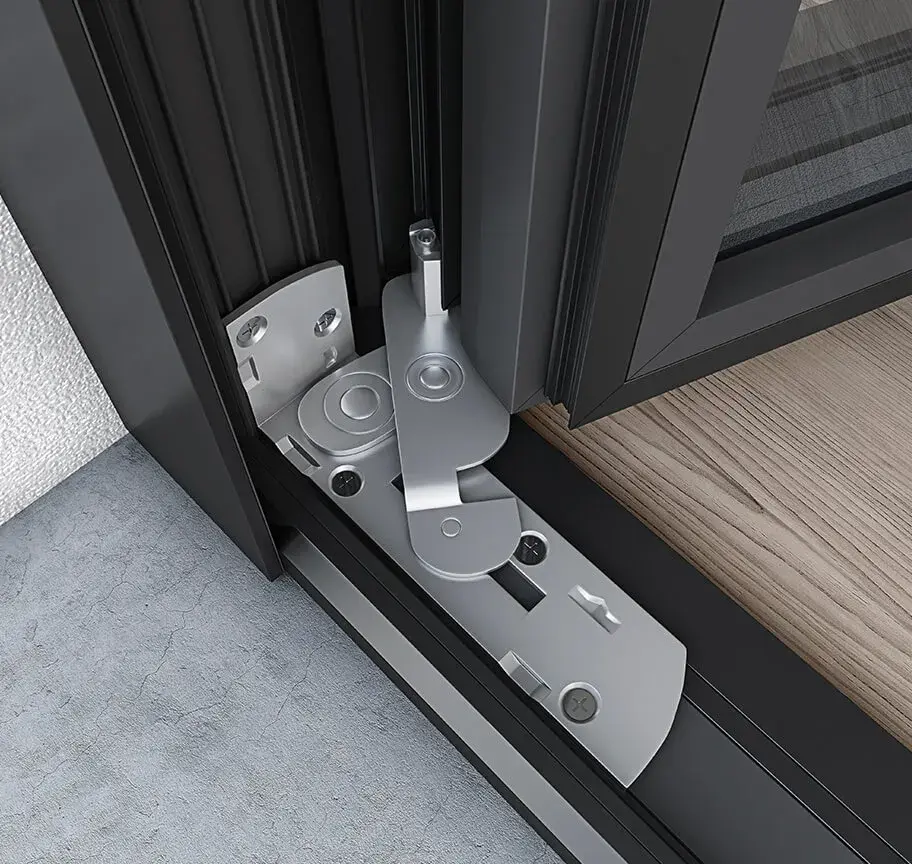

HIDDEN HINGES
Concealed hinges for opening and tilting, designed to remain unseen.

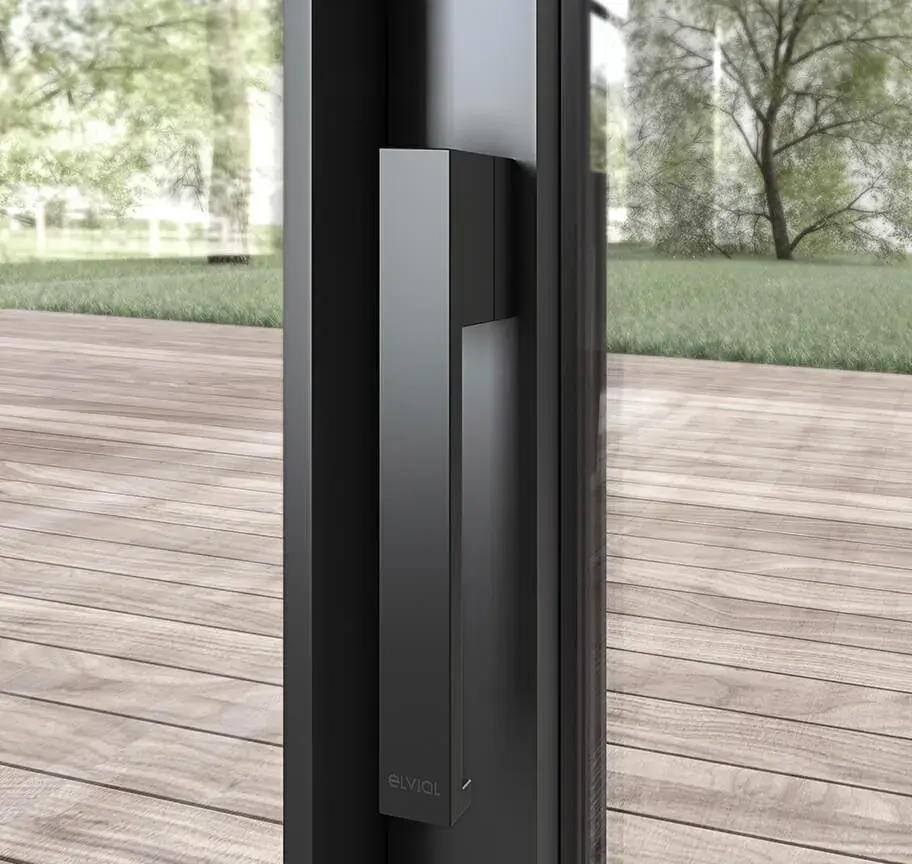

HANDLES
Elegantly designed handles that enhance the beauty of industrial
interiors.
interiors.
The Technology:
It’s a feeling. It’s precious. What should be kept outside -noise, water, wind- is kept outside. What’s inside is safe and sound. This is where we set our boundaries and keep them intact. The performance of ESSENCE W67 HI² on all factors affecting interior environment is outstanding and certified by ift Rosenheim Institute in Germany.

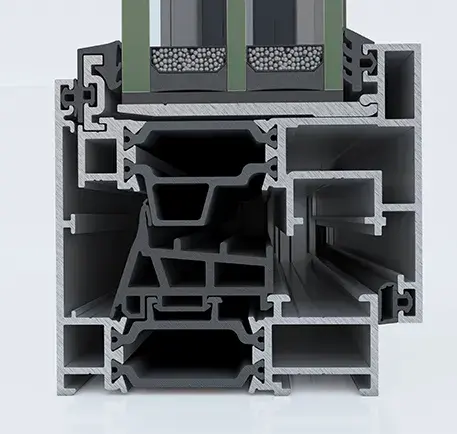

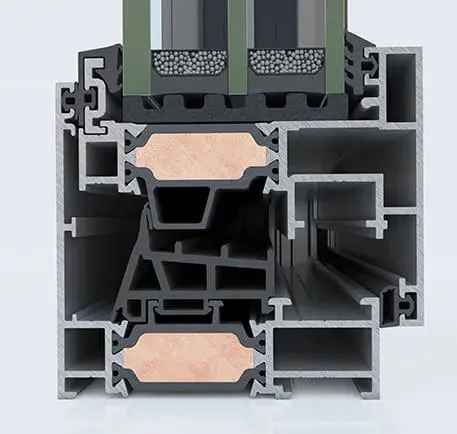

ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.
Level 1
Uf ≥ 2.2 W/m²K
Level 2
Uf ≥ 1.9 W/m²K
Level 3
Uf ≥ 1.8 W/m²K
Energy
Levels

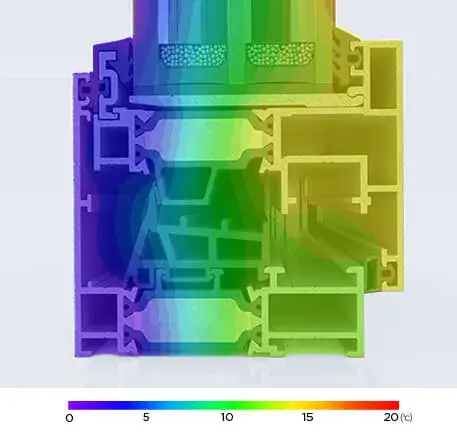

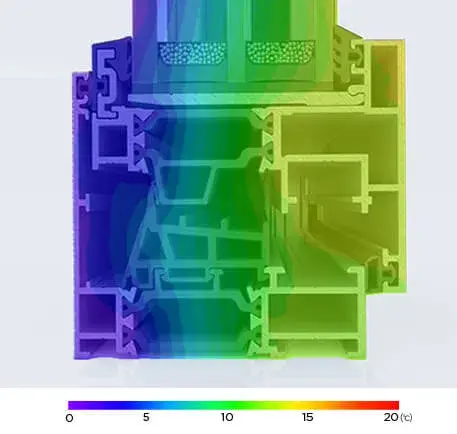

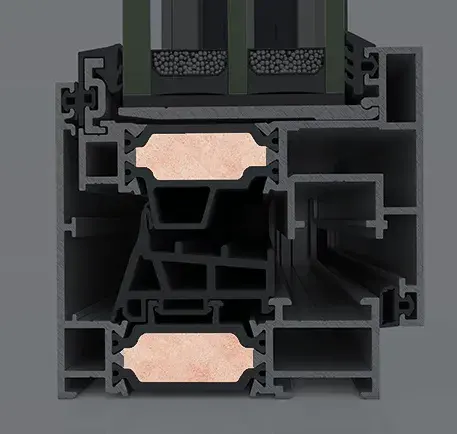

Isothermic
View
THE IDENTITY
Design
System Depth
67
mm
mm
Min Face Height
Frame – Sash
66
mm
mm
Min Face Height
Threshold – Sash
56
mm
mm
Min Face Width
Middle Mullion
78
mm
mm
Properties
Max Sash Height
2.500
mm
mm
Max Sash Width
1.400
mm
mm
Max Sash Weight
130
kg
kg
Max Glass Thickness
46 or 41 or 28
mm
mm
THE PERFORMANCE
Energy
Thermal Insulation Uf
EN ISO 10077-2
≥0.21
W/m²K
W/m²K
Confort
Air Permeability
EN 12207
Class 4
Watertightness
EN 12208
E1050
Resistance to Wind Load
EN 12210
C5 / B5
Sound Reduction
EN 10140-2
38 dB
NAFS
AAMA Rating
Class AW*
PG Rating
100*
